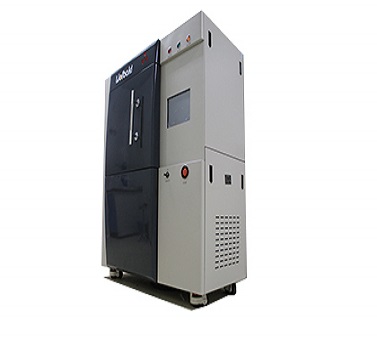

Multifunctional X-ray Irradiator
Model: WBK-P0002-V1

Name Specification and parameters
Voltage of irradiation tube MAX: 225 KV
Current of irradiation tube MAX: 17.5 mA
Watt of irradiation tube MAX: 4 KW
Beam size 7.5 mm
Angle 40°
Filter size (cooper) 0.3 mm
Filter size (cooper) 0.6 mm
Filter size (cooper) 0.8 mm
Distance from radiation source to samples/rotatory table 250-500 mm
Exposure time 0-9999 sec
Standard power supply (optional) AC 220 V ± 10%, 50/60 Hz, 7.5 K VA
Standard power supply (optional) AC 110V/380V, 50/60Hz, 7.5 K VA
Water cooling system Independent; Water flow rate>4L/min
Rotatory table speed 4 rpm (optional)
Chamber size 500 mm*600 mm*544 mm (H*W*D)
Irradiator size 1836 mm*1460 mm*875 mm (H*W*D)
Weight Irradiator: 1500 Kg;
Water cooling system: 120 Kg

About this item:
This X-ray irradiator is designed to sterile mosquito for use in population suppression by either Sterile Insect Technique (SIT) or combined IIT-SIT (Zheng, et al. Nature. 2019; 572: 56-61). It can also be used for other purposes, such as animal irradiation and research in microbiology, medicine development, cancer biology and genomics.
